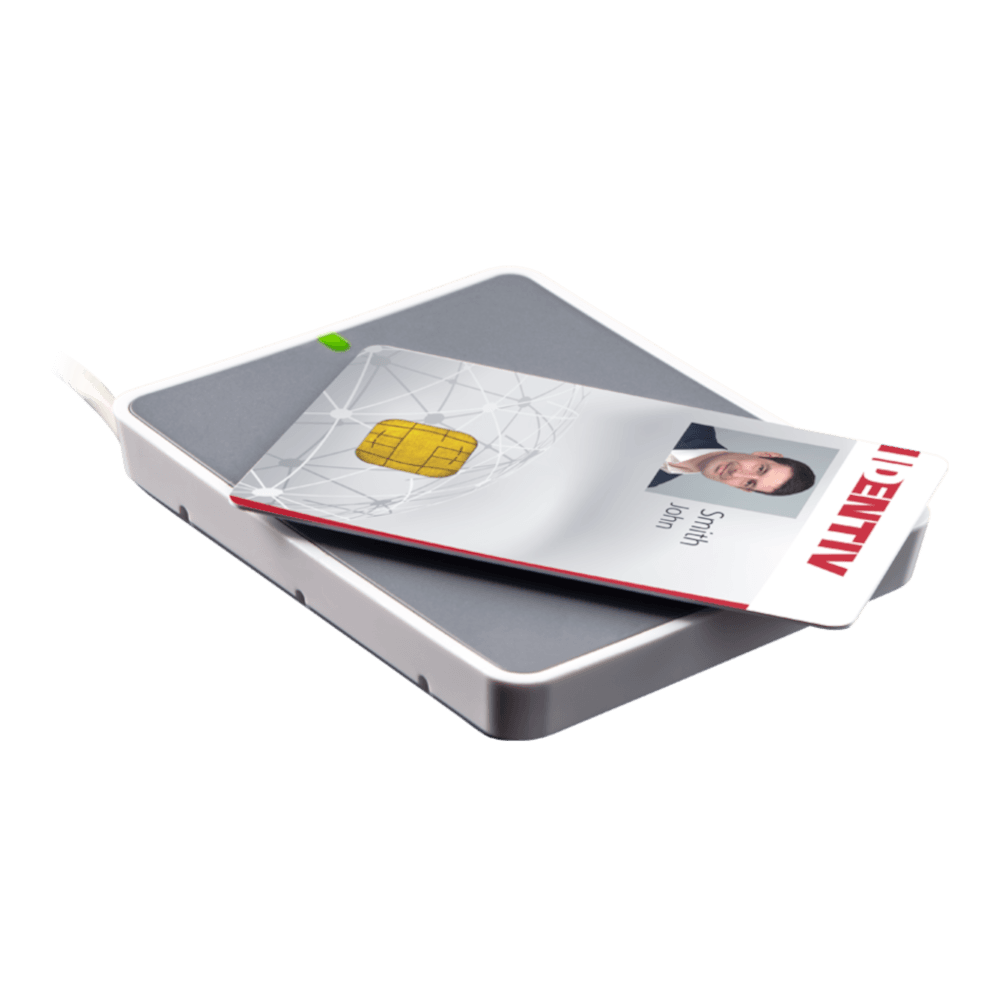

uTrust 3700F

Proximity desktop reader from Hirsch, attached via USB. The reader has a proximity interface for writing and reading cards operating at 13.56 MHz (e.g. Mifare) and provides support for NFC technology. With optimized transaction times and support for 848kBit/s for proximity communication, it provides high user comfort.

The reader has Flash memory which enables firmware updates.

Now the uTrust 3700F reader is also available in a USB Type C version.

Datasheet

uTrust 3700

Software

Device driver

Online store

Czytnik uTrust 3700F (USB A)

Technical specification

Host interfaceUSB 2.0, CCID
Smart card interfaceno
Contacless interfaceSupported protocols T=CL, MIFARE, Communication speed 106/212/424/848 kbit/s, Supported standards: MIFARE™ (Classic, Ultralight, Ultralight C, MIFARE PLUS, DESFire, DESFire EV1 2/4/8k), FeliCa., Calypso, CD21, NFC Forum Tag Types 1/2/3/4
DimensionsLWH 91 x 75 x 12 mm
Supported OSWindows® 7/8/10/11 (32 and 64 bit), Windows® Server 2008/2012/2016/2019, WindowsXP, MacOS 10.9.x - 12.2.x, Linux 2.6.x, and 3.x, 4.x, 5.x (32 and 64 bit), Android 4.0 and higher
Certifications &CompliancesUSB 2.0 Full Speed, CCID, Microsoft. WHQL, RED 2014/53/EU, CE, FCC, UL94, UL60850, RFLJ, RoHS2, REACH, WEEE
