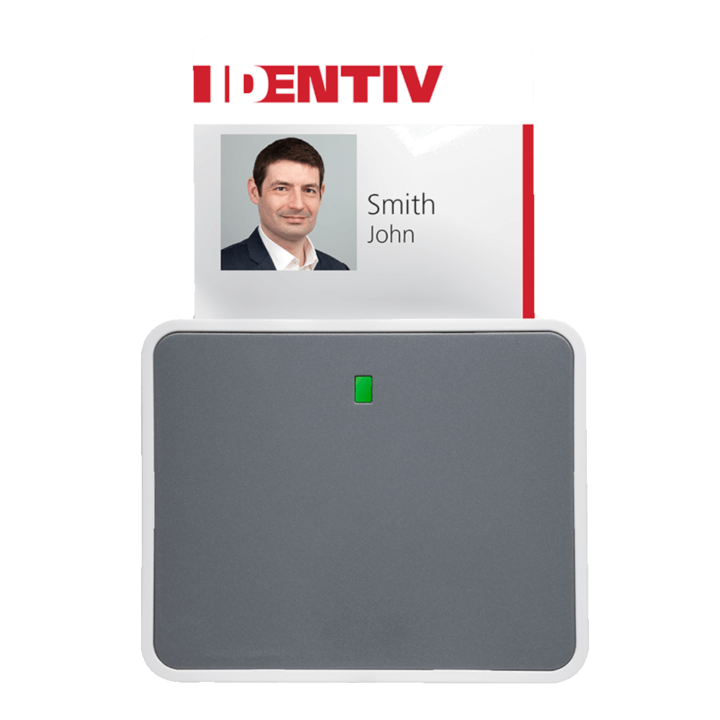

uTrust 2700

The uTrust 2700 (former name Cloud 2700) reader from Identiv is an upgraded successor to the popular SCR3310 and, in its stand version, the SCR3311. It comes, like its predecessors, in versions with flash memory so that it is possible to replace firmware (F version) and without it (R version).



The use of a stand (option) allows stable and comfortable operation of the reader with one hand.

Now the uTrust 2700 reader is also available in a USB Type C version

Datasheet

uTrust_2700R

uTrust_2700F

Software

Device driver

Online store

Czytnik uTrust 2700F (USB A)
Czytnik uTrust 2700R (USB A)

Stand for uTrust 2700

Technical specification

Host interfaceUSB 2.0 CCID (USB1.1/3.0)
Smart card interfaceSupported protocols T=0, T=1, Communication speed up to 600kBit/s, Frequency up to 12 MHz (PPS, parametr Dl), Supported standards 5V,3V,1.8V ISO/IEC 7816 Class A/B/C (5V,3V,1.8V)
Contacless interfaceno
DimensionsLWH 70 x 60 x 16 mm
Supported OSWindows® 7/8/10/11 (32 and 64 bit), Windows® Server 2008/2012/2016/2019, WindowsXP, MacOS 10.9.x - 12.2.x, Linux 2.x, and 3.x, 4.x, 5.x (32 and 64 bit), Android 8.0 and higher
APIPC/SC, CT-API (thru wrapper on top of PC/SC), Synchronous-API (through wrapper on top of PC/SC), M-Card API (through wrapper on top of PC/SC)
Certifications &CompliancesEMV 2011 Ver 4.3 Level 1, ISO/IEC 7816, USB 2.0 Full Speed, CCID, Microsoft® HCK, CE, FCC, UL 60950, VCCI, GSA APL, RoHS2, REACH, WEEE
