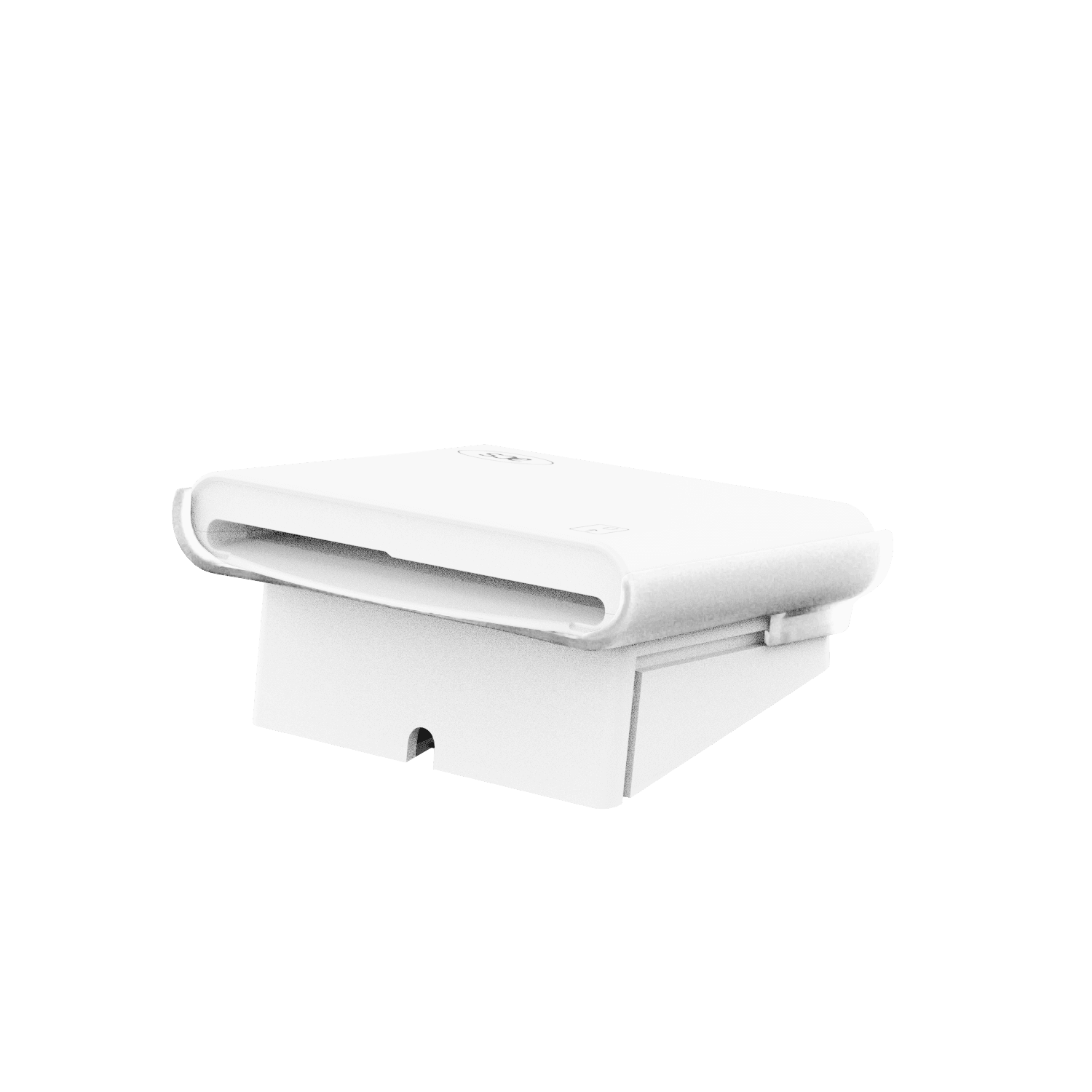

ACR40U

New model of compact reader from ACS company for electronic contact smart cards, attached  via USB A or C port. The reader is used to read and write smart cards for electronic signature, CEPIK , domain login, etc.

The reader has two LEDs that indicate the status of the device’s operation. The reader has the ability to update the firmware and has a small internal memory for use by the user application.

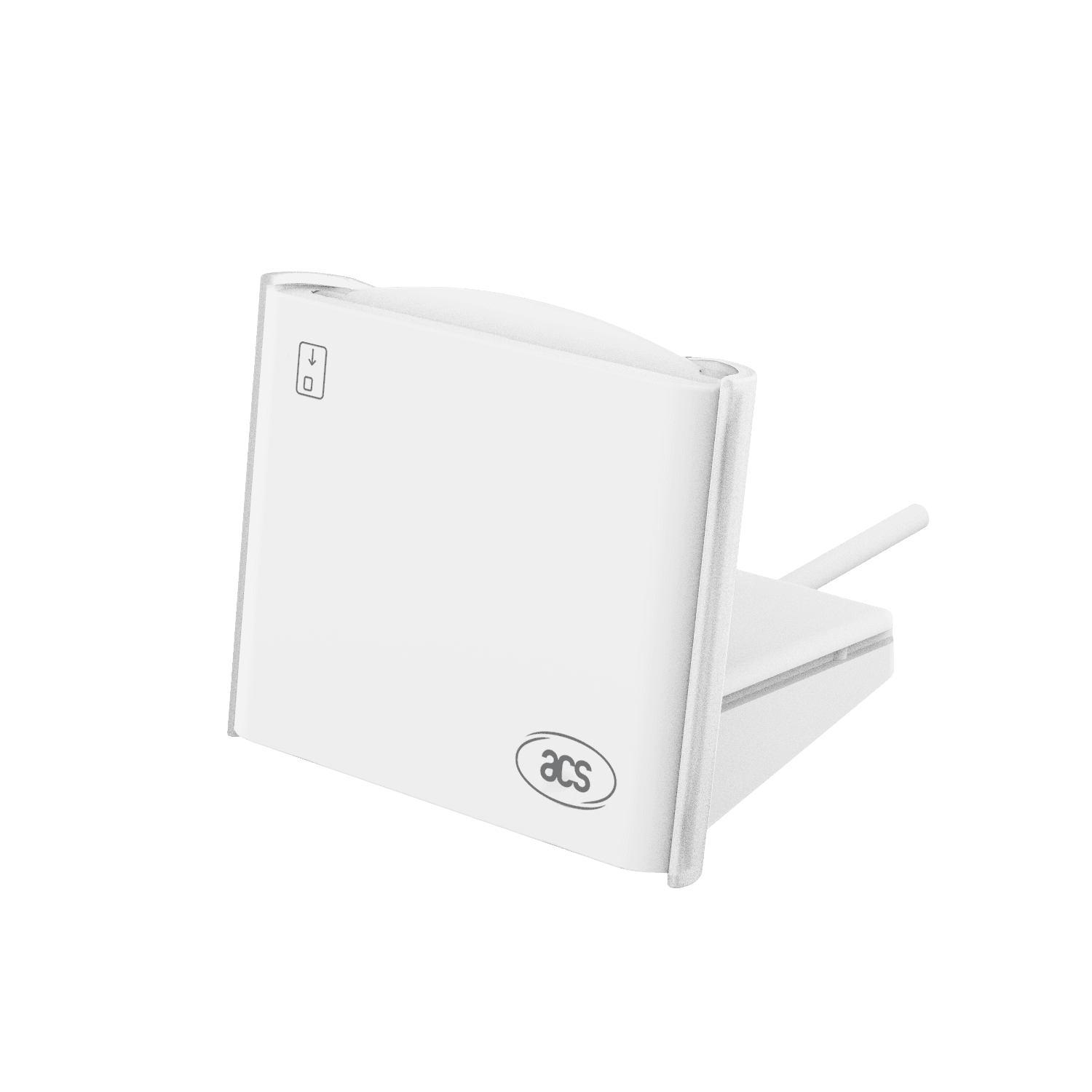

The reader can optionally be equipped with a configurable stand so that the reader can be positioned vertically or diagonally. Special adhesive tapes are also included for attaching the device to the surface.

Datasheet

ACR40U A1

ACR40U B1 (with stand)

Software

Device driver

Online store

ACR40U A1 (USB A)

ACR40U B1 (USB A with stand)

Technical specification

Host interfaceUSB type A, type C,
Smart card interfaceSupported protocols T=0, T=1, Communication speed up to do 600 kbps, Frequency 4,8 MHz, Supported standards h ISO 7816 Class A,B,C
Contacless interfaceno
DimensionsVER A1 LWH 55x65x9 mm
Ver B1 LWH 62,5x67,6x58,5 mm
Supported OSWindows®, Linux®, macOS, iOS, iPadOS, AndroidTM, SolarisTM
APIPC/SC
Certifications &CompliancesCE, FCC, UKCA, VCCI, RoHS, REACH, WEEE, UL 62368, IEC/EN 62368, EMV™ Level 1 (Contact), PBOC Level 1 (Contact), KC, J-LIS, TAA, Microsoft® WHQL
